Haibike's XDURO FullSeven Carbon Pro pulls no punches when it comes to performance. A full carbon frame, crank, handlebar, and rims make for an incredible ride and very low overall weight, while high quality SRAM XX1 components ensure excellent performance. The Bosch motor system brings peak performance to your Haibike. The CX DriveUnit delivers a maximum torque of 75Nm to create huge power, and a long toothed motor pulley minimizes the chances of chain drop. Extremely responsive sensors measure power, pedal rate, and speed to adjust motor output, creating assistance that is responsive, natural, and smooth. The Bosch 400Wh battery can last up to 109 miles (in Eco mode), and it’s shockproof, and lockable to deter theft. It can reach a full charge in just 3.5 hours. The Intuvia display acts as your captain’s bridge and command center, controlling drive parameters and displaying system information such as distance, elapsed time, and speed.

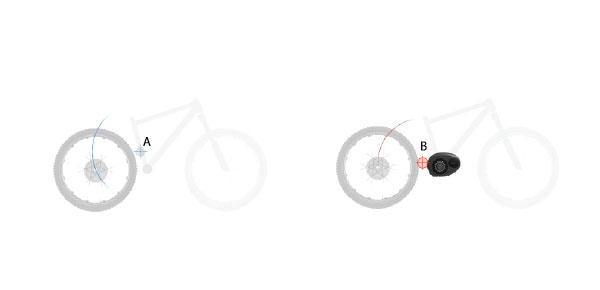

The center of rotation on a full suspension bike is typically located behind the chainring (A). This creates a smooth wheel path, minimizes pedal kickback, and stabilizes the chain. This same design creates problems when used with a motor (B); it creates a wheel path that increases pedal kickback and lengthens the wheelbase significantly, causing the bike to stiffen up against obstacles and handle poorly.

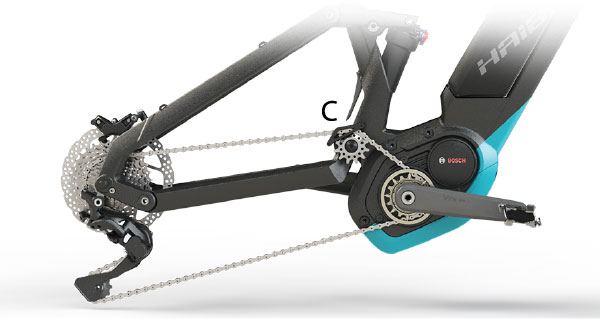

Haibike's engineers created the SES (Sprocket Equalizing System)(C), which separates the chain from the chainring by guiding the chain over a pulley wheel that is located directly on the swingarm pivot point. This decreases pedal kickback while preserving a short, sporty wheelbase and quick handling.
-Automatic gear changer for the new systems: when changing gears the torque is reduced, so that damage to the gears and chain is noticeably reduced.
-The extremely efficient Powerpack has a 400Wh capacity and lasts 109 miles in Eco mode. It weighs only 5.5 lbs, is shockproof, and locks to the frame.
-A long toothed chain wheel resists high force and increases chain retention.
-The motor is eqipped with sensors for power, pedal rate and speed. These sensors have a sampling rate of 1,000 readings per second using a modern 32-Bit processor.
let there be LIGHT
The rear Column Taillights feature high performance LED and reflectors that direct the light out at specific angles to increase visibility.
Haibike's eLight headlights use a 60 LUX central focus LED to illuminate at a distance and two peripheral bulbs to light your immediate surroundings.
|Frame||XDURO UD Carbon, 4-link System, 120mm-travel, 142 x 12mm thru-axle|
|Fork||Fox 32 Float CTD Remote, 120mm-travel, 15mm thru-axle, tapered|
|Rear Shock||Fox DPS Factory Kashima|
|Electric-Assist Type||Pedal Assist|
|Motor Specs||Bosch Performance CX 350W|
|Battery Type/Weight||Bosch Li-ion 36 Volt, 400w|
|Recharge Time||3.5 hours|
|Max. Assisted Speed||20mph|
|Rims/Wheels||Reynolds XC Carbon Black Label|
|Tires||Schwalbe Rocket Ron EVO, 27.5 x 2.25|
|Crankset||The Hive, Exalite R|
|Rear Derailleur||SRAM XX1|
|Rear Cogs||SRAM XX1, 11-speed: 10-42|
|Brakes||SRAM Guide Ultimate hydraulic disc, 200/180mm rotors|
|Handlebars||XDURO Ergo Flatbar carbon, 720mm|
|Tape/Grips||XLC Sport lock on|
|Saddle||Fizik Tundra M1|
|Accessories & Extras||Bosch Ny onboard computer with push assist and GPS|
* Subject to change without notice.
|Black / Medium||791964523239||18-16-8320||XDF25859369K|
